Self-supported towers are called to the Towers which have tripod or four pod and legs connected together with rafter parts.

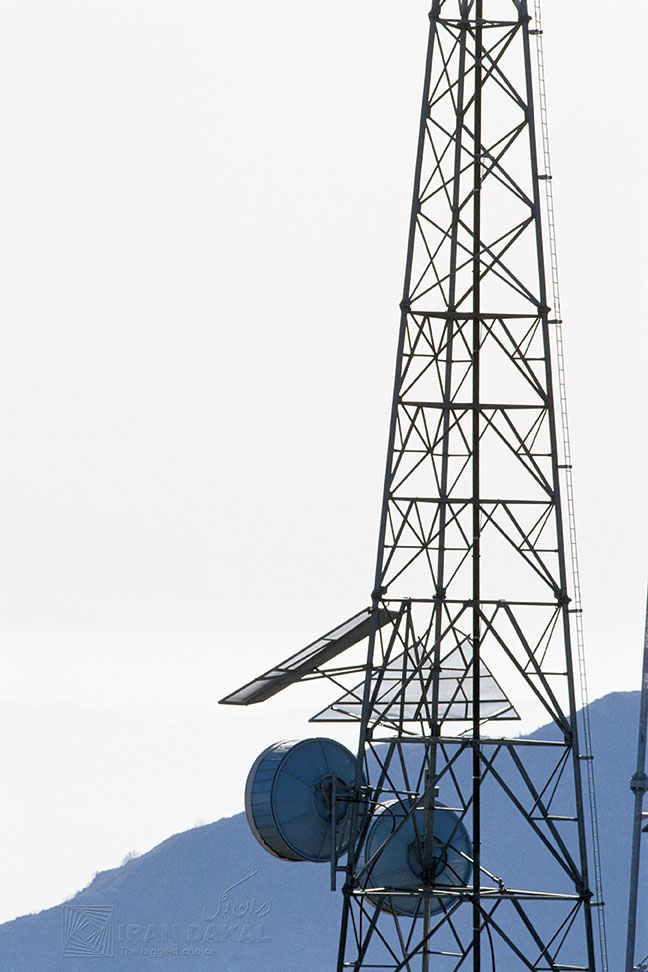

Self-supported towers four pod all cornerstone
All corner stone four pod towers made from cornerstone. Main legs being from cornerstone which depends on the type of designing of tower, used from cornerstone type ST37 or ST 52.
The internal parts of these towers include Braces, Horizontals, redundant, …..type of cornerstone. The crossing of these towers had been in the form of square which with increasing length, height, the angle of square gradually and in appropriate with slope defined for all tower have been decreased.




Application:

  • Installation of Microwave Antenna
  • Installation of Mobile Antenna
  • Installation of Wireless Antenna

Construction Methods:

in start of the work, we screwed the cornerstone, then utilizing high resisted bolts ranged 8.8-10.9 connected together in some cases it may be for providing connection condition the lateral plates may be used.

Warn: by reason of consideration of communication standards, utilizing raw material and high grade and manufacturing best quality communication towers, The Iran Dakal company as Manufacturer of communication towers in Iran, which is authorized and confirmed by entities, organizations and Governmental and private Enterprises. Some individuals and private companies in order to selling their low grade and non-standard products , they have been abusing the name and Brand of Iran Dakal. Then, we would like to ask our customers at the time of inquiry and purchase do their best for consideration.

Advantages:


  • Removing of welding defects
  • High area of windward
  • Possibility of investigation and inspection of all parts of tower.
  • Strength and high capacity against severe wind speed.
  • Disadvantages
  • Need to adequate space for tower installing
Self-supported towers four pod all cornerstone
